So far we have an spaceship that the player can control, now we are going to give him a weapon he can fire. First, we need to consider that, as standard, MPAGD works with 16 x 16 pixel sprites, so we will initially create a 16 x 16 weapon.
Let's create the weapon sprite:
MENU: EDITOR > SPRITES

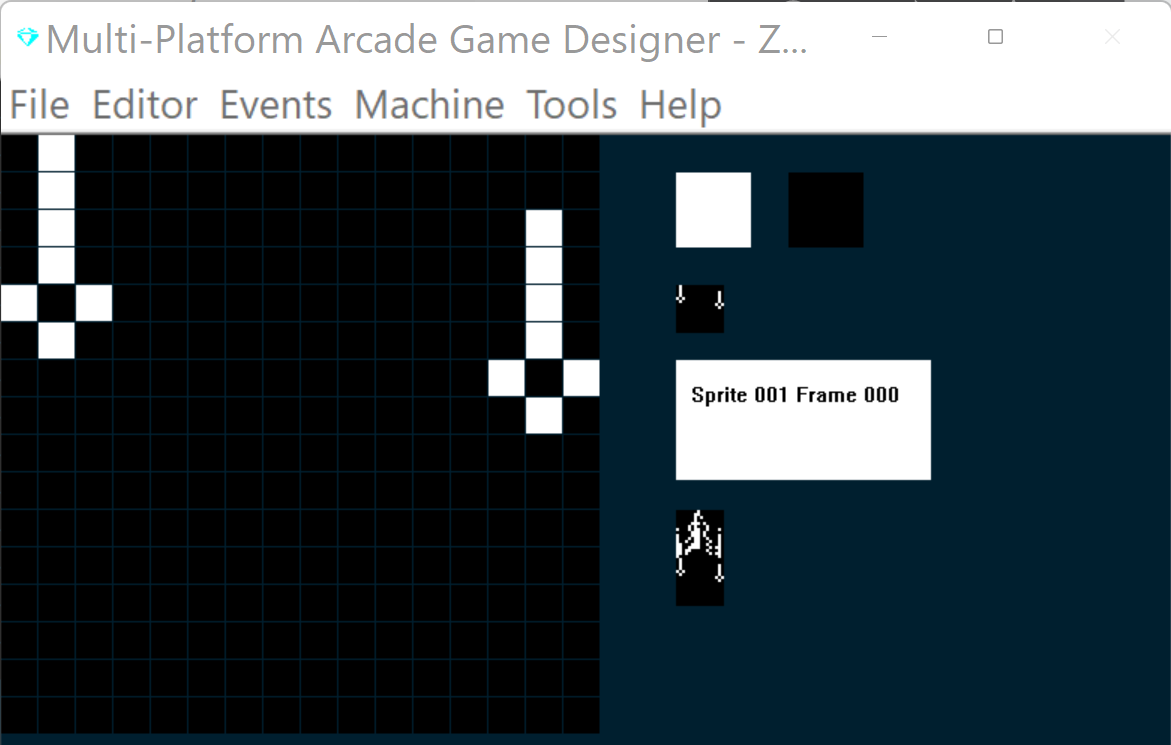

Hit X to add a new sprite, and create your Photon Torpedos (or whatever you want the enemy spaceship to shoot!), here's mine:
Now, before we start coding, there's a couple of things we need to consider:
1) MPAGD can only handle 12 sprites on screen at any one time, so we're going to need to keep track of how many are in play.
2) We're going to want to check the player has released the fire key each time they shoot, no auto fire here, so we're going to need to check for key debouncing.
Each of these can be solved pretty easily.
Keeping track of on screen sprites
We'll use a variable, S, to keep a tally of how many sprites are on screen at any one time. Each time an enemy appears, or a torpedo is fired, we'll increment the tally, making sure it never goes above 12. Similarly, each time one is removed we'll decrement the tally (S).
To start with we'll s,et S to 0 in the RESTART SCREEN event then we'll ADD 1 to S for each sprite when it is initialised:
MENU: EVENTS > RESTART SCREEN
EVENT RESTARTSCREEN LET S = 0 ; initialise the sprite counter
MENU: EVENTS > INITIALISE SPRITES
EVENT INITSPRITE ADD 1 TO S ; increment the sprite counter
So, when the screen is drawn, S starts at 0 and increments for every sprite that is then placed on Screen
Next, we'll write some code for the Photon Torpedo's (the weapon) which will define what happens when the player shoots one. We'll use Sprite type 1 for the weapon:
MENU: EVENTS > SPRITE TYPE 1
Q
EVENT SPRITETYPE1 ; PHOTON TORPEDOS ; ==================== IF DIRECTION 1 ; Torpedo travel up LET IMAGE = 1 ; make sure we are on image 1 REPEAT 6 ; torpedos move quick, so do this 6 times SPRITEUP ; move up ADD 2 TO SETTINGB ; increase the distance counter by 2 IF SETTINGB > = 88 ; when distance travelled = 88 LET DIRECTION = 99 ; run the explode routine ENDIF IF Y <= 8 ; has the torpedo reached the top? LET DIRECTION = 99 ; yes, so explode it EXIT ; exit this event (as we are in a loop) ENDIF ENDREPEAT ENDIF IF DIRECTION = 99 ; explode the torpedo REMOVE ; remove the torpedo SUBTRACT 1 FROM S ; decrement the sprite counter ENDIF
Like in Arcadia, player torpedos do not travel the full height of the screen, they explode after travelling half the full height, so we're doing the same. I've used the local variable SETTINGB to calculate when the torpedo has travelled 88 pixels, at which point we change its DIRECTION to 99 which is a sub routine that will explode the torpedo, we'll design an explosion graphic later, for now, we'll just remove the sprite and decrement the sprite counter variable (S)
We remember to update the Initialise Sprite Event to set SETTINGB to 0 when a torpedo is first initialised.
EVENT INITSPRITE ADD 1 TO S ; increment the sprite counter IF TYPE 1 ; PHOTON TORPEDO LET SETTINGB = 0 ; initialise the distance counter ENDIF
Next, we'll head back to our player event and add the code for the FIRE button:
EVENT PLAYER AT 0 14 DISPLAY TRIPLEDIGITS S ; COLOURS ; ======================= SPRITEINK 69 ; Bright Cyan ink IF KEY UP ; Player presses up (thrust) LET FRAME = 1 ; switch to the frame that shows jetflame IF Y > 92 ; If player is below the 80 y pixel line SPRITEUP ; move player up SPRITEUP ; and up again (faster movement) ENDIF ELSE ; if player is not pressing thrust LET FRAME = 0 ; switch to the regular spaceship (no jetflame) SPRITEDOWN ; move player down ENDIF ; PLAYER MOVEMENT ; ==================== IF KEY LEFT ; has player pressed LEFT? IF CANGOLEFT ; can the player move left? SPRITELEFT ; yes, move player left SPRITELEFT ; and again (moves faster) ENDIF ENDIF IF KEY RIGHT ; has the player pressed RIGHT? IF CANGORIGHT ; yes, can the player move right? SPRITERIGHT ; yes, move player right SPRITERIGHT ; and again (moves faster) ENDIF ENDIF ; FIRE PHOTON TORPEDOS ; ==================== IF KEY FIRE ; if player presses fire key IF SETTINGA = 0 ; if firekey is debounced IF S < 12 ; and if less than 12 on screen SPAWN 1 1 ; spawn a bullet LET SETTINGA = 1 ; bounce the fire key SPAWNED ; switch to the Photon Torpedo LET DIRECTION = 1 ; set its direction to 1 (up) ENDSPRITE ; return to this sprite ENDIF ENDIF ELSE ; fire key not pressed LET SETTINGA = 0 ; debounce it ENDIF ; BOUNDARY CHECK ; ==================== IF Y >= BOTTOMEDGE ; has player gone beyond the bottom edge? LET Y = BOTTOMEDGE ; yes, keep them at the bottom edge ENDIF
Let's give it a test. by building the game

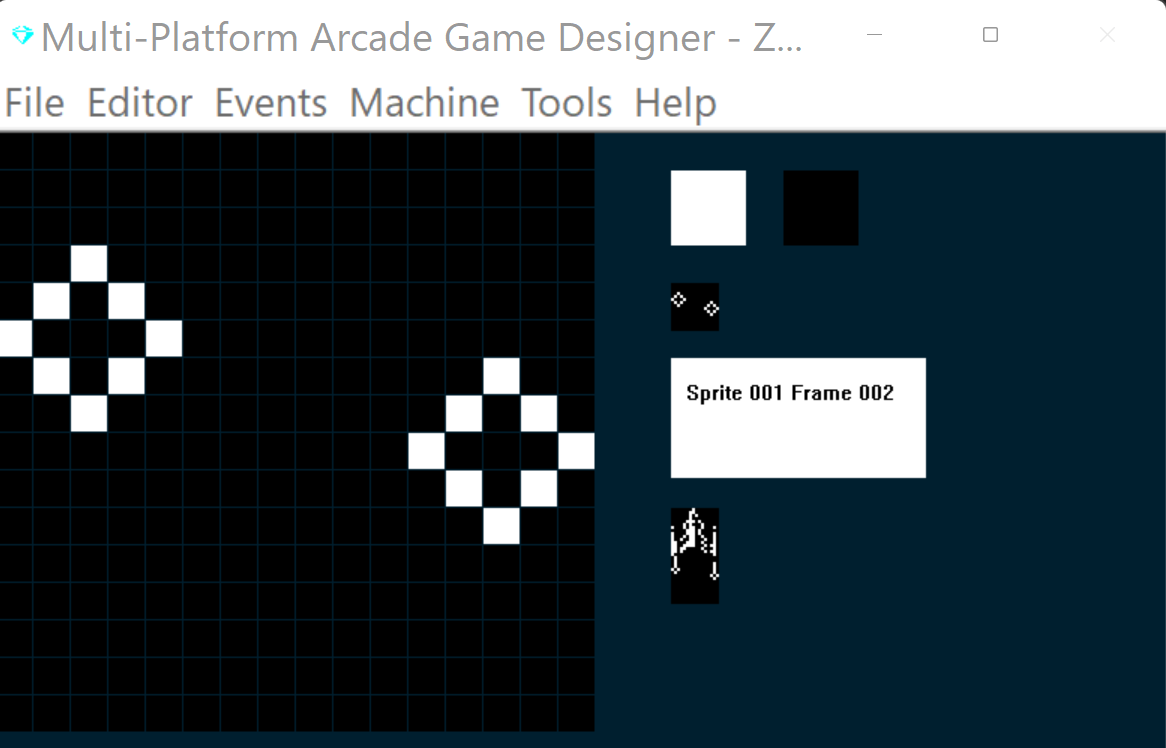

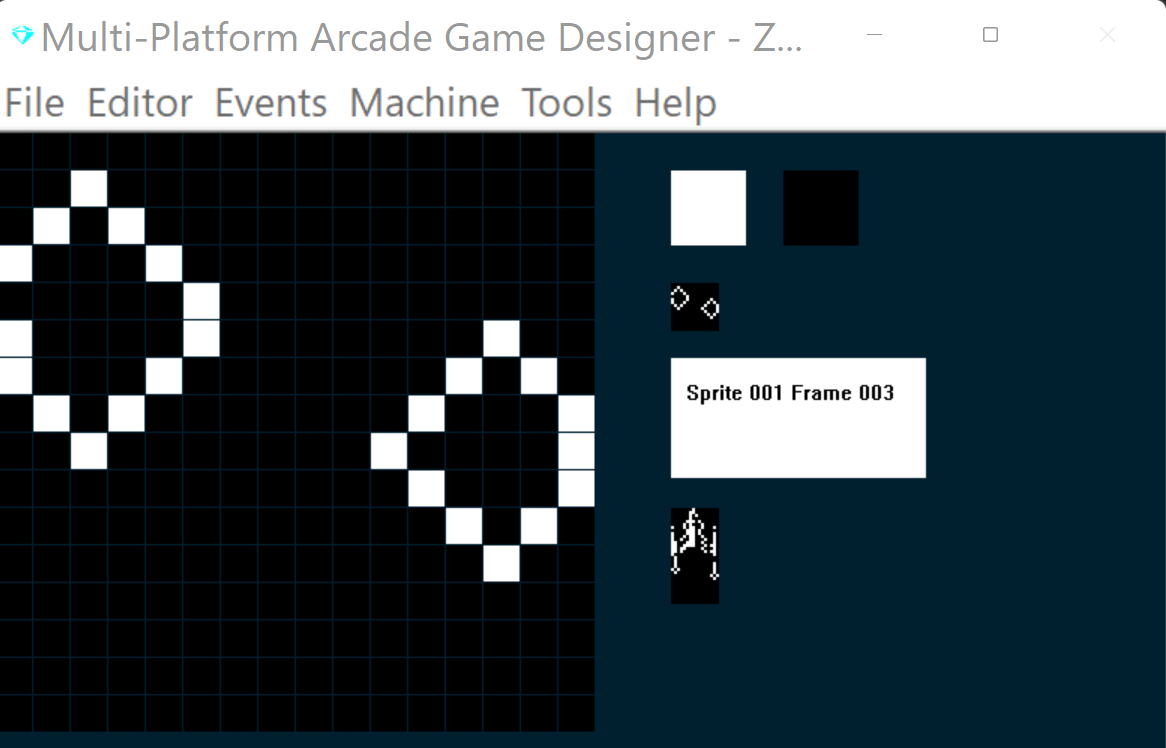

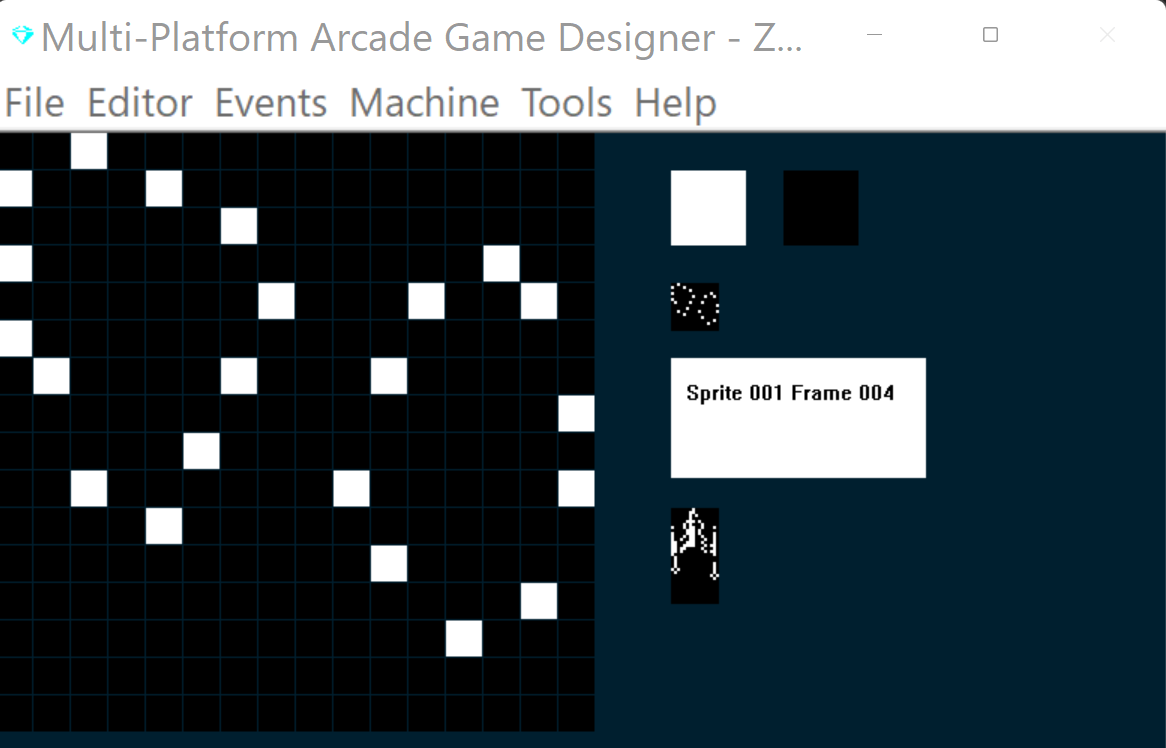

That's working as expected, now let's tidy it up by creating an explosion, we'll do this by adding some additional frames to our torpedo sprite:
Now we'll update our explosion subroutine in the torpedo event (SPRITE TYPE 1), I've highlighted the new code below:
EVENT SPRITETYPE1 ; PHOTON TORPEDOS ; ==================== IF DIRECTION 1 ; Torpedo travel up LET IMAGE = 1 ; make sure we are on image 1 REPEAT 6 ; torpedos move quick, so do this 6 times SPRITEUP ; move up ADD 2 TO SETTINGB ; increase the distance travelled counter by 2 IF SETTINGB > = 88 ; when distance travelled = 88 LET DIRECTION = 99; run the explode routine ENDIF IF Y <= 8 ; has torpedo reached the top? LET DIRECTION = 99; yes, so explode it EXIT ; quit this event as we are in a loop ENDIF ENDREPEAT ENDIF IF DIRECTION = 99 ; explode the torpedo ADD 1 TO FRAME ; increment the frame IF FRAME = 5 ; when we reach the last frame REMOVE ; remove the torpedo SUBTRACT 1 FROM S ; decrement the sprite counter ENDIF ENDIF
So, now we have our playr spaceship, which can move and fire torpedos...I think we're going to need an enemy!
NEXT: PART 4: OUR FIRST ALIEN ENEMY
